| Place of Origin: | China |
|---|---|
| Brand Name: | Powerplus |
| Certification: | ISO 9001 |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | Plyfilm or plywood suitable for sea shipping |
| Delivery Time: | 25-30 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 SETS PER MONTH |
| Brand: | Dongfeng | Overall Dimension: | 10200×2500×3500mm |
|---|---|---|---|
| Curb Weight: | 13705kg | Loading Capacity: | 20m³ |
| Engine: | Cummins 210hp | Wheel Base: | 4750+1300mm |
| Highlight: | 20m3 Refuse Compactor Truck,Dongfeng Refuse Compactor Truck |
||

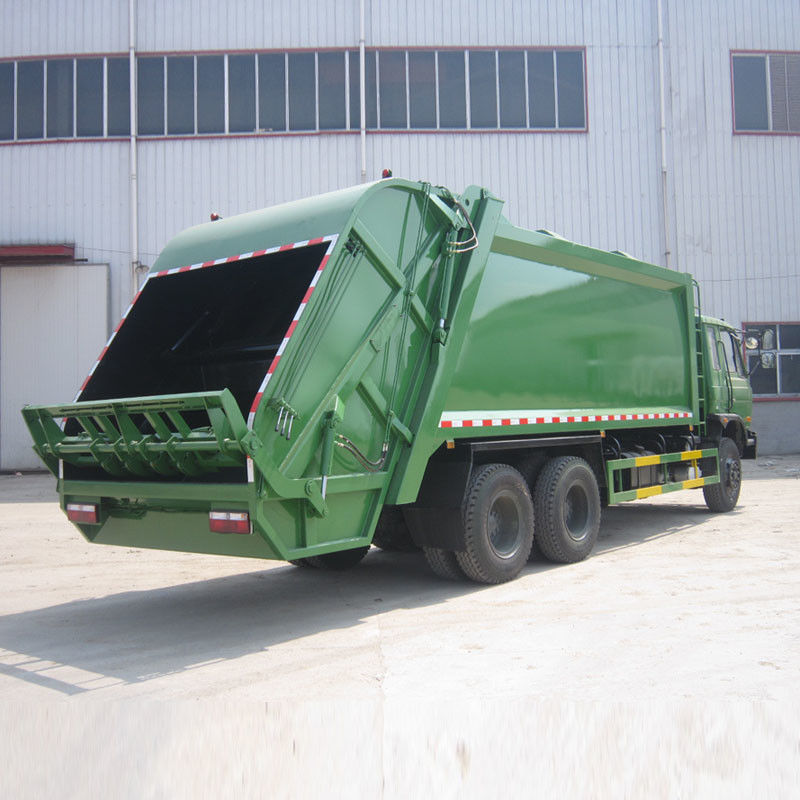

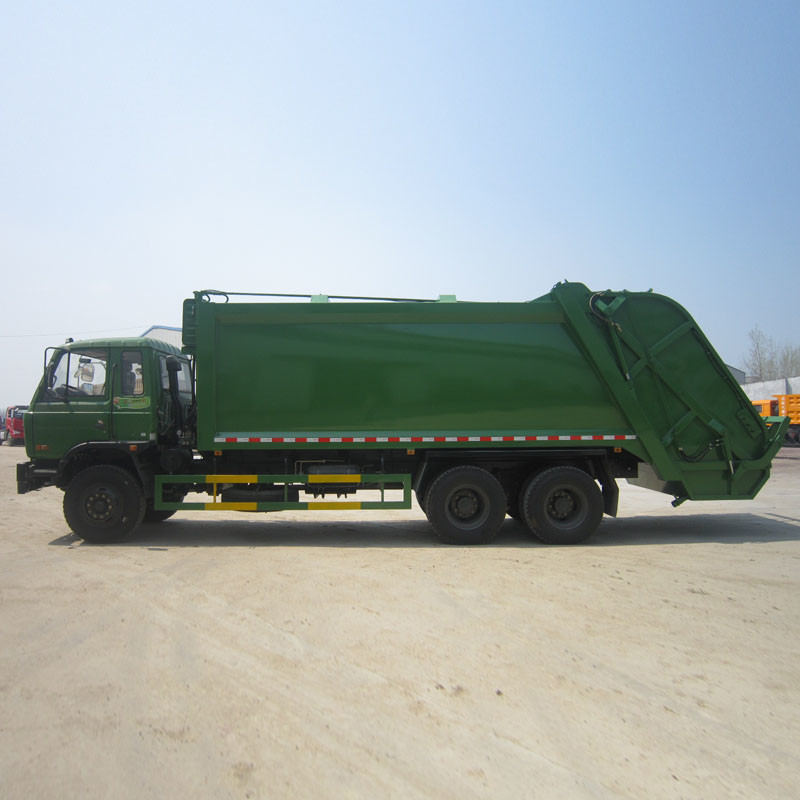

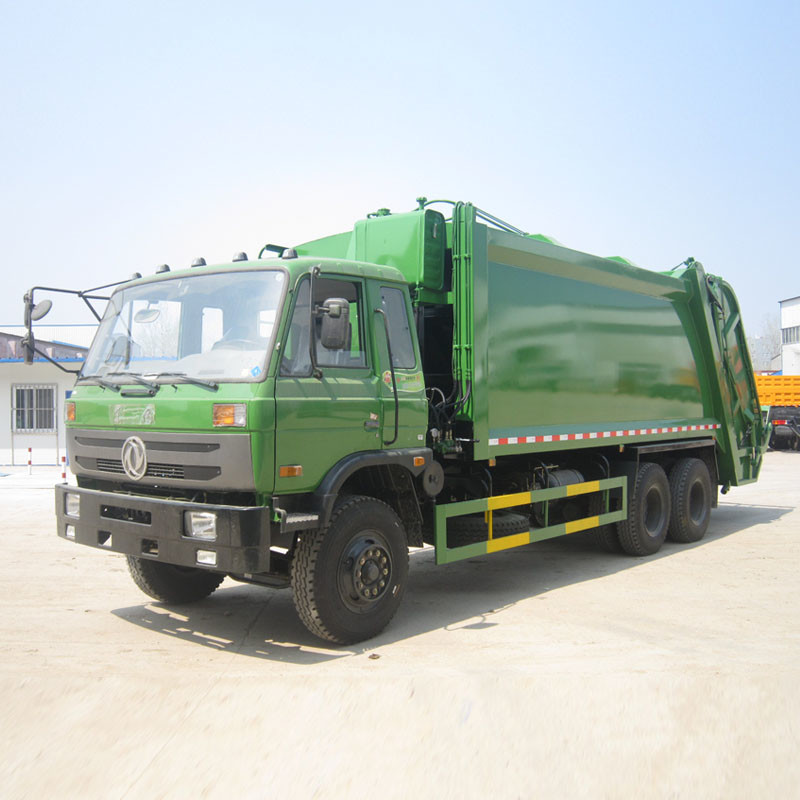

Dongfeng 20m³ Refuse Compactor Truck Different Loading Capacity
Vehicle parameters:
| Overall dimensions | 10200×2500×3500mm | Curb weight | 13705kg |
| Loading capacity | 20m³ |
Chassis parameters:
| Chassis brand | DONGFENG | ||
| Overall dimensions | 9565x2470x2850mm | Wheel base | 4750+1300mm |
| Front/rear wheel track | 1940/1860/1860mm | Front/rear suspension | 1245/2670mm |
| Approach/departure angle | 28/15° | Maximum speed | 85km/h |
| Chassis Manufacturer | Dongfeng Motor Corporation | ||
| Cab | Configuration | A row and a half deluxe cab(with sleeping berth),allowable 3 passengers | |
| Color | Red,other color is optional | ||
| Engine | Model | B210 33 | |
| Emission | Euro 3 | ||
| Type | 6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine | ||
| Rated power | 210hp,rated power speed 2500rpm | ||
| Displacement | 5900ml | ||
| Max.torque | 700N.m | ||
| Bore x stroke | 102x120mm | ||
| Manufacturer | Dongfeng Cummins Engine Co., Ltd. | ||
| Tire | Size | 10.00-20 nylon tire | |
| Number | 10+1 nos | ||
| Frame | 280×80×(7+5)mm | ||
| Fuel tank | 200L,steel | ||
| Front axle | 5.0T | ||
| Rear axle | 10.0T | ||
| Drive form | 6X4 | ||
| Rated voltage | 24V,DC | ||
| Transmissions | Gearbox 8JS118, 8 speed forward 1 reverse. | ||
| Steering device | Power assisted steering | ||
| Steering wheel | Left hand drive | ||
| Selective configuration | Air Conditioner,steel wire tire,new driver’s cab | ||
| If there is a slight change in the chassis parameters above,please take the actual product as the standard | |||
Equipment:
| Structure | Body, sub frame, lifting rear part, the loading device, the pushing-out plate, hydraulic and electric systems |
| Loading capacity | 20m³ |
| System of loading | Mechanized, rear loading |
| Modes of the pressing | Manual,semi-automatic,automatic,lifting rear part operation manual,loading,pushing,pressing, pushing out automatic |
Body:
| Version | All-metal |
| Shape | arc-shaped |
| Sidewalls | Sheet carbon steel (thickness: 4 mm) |
| Bottom | Sheet carbon steel (thickness: 5 mm) |
| Roof | Sheet carbon steel (thickness: 4 mm) |
| Front frame | Sheet carbonaceous steel (thickness: 5 mm) |
| Rear frame | П-shaped profile from sheet carbon steel (thickness:5 mm) |
| Basis | 120х120mm (thickness: 5 mm) |
Loading bunker:
| Loading bunker | All-metal with sidewalls and a loading ladle |
| Volume | 1.8 m3 |
| Sidewalls | Sheet carbon steel (thickness: 4 mm) |
| Ladle floor material | Sheet carbon steel (thickness: 5 mm) |
| Liquid drain | Drainage channel,sewage tank |
| Working zone Lighting | 2 lamps |
| Mechanism of raising | Two hydraulic cylinders |
| Ensuring tightness | Between the body and lifting back part in the lower part profile acid-proof rubber is used. |
Pressing system:
| Features | Control mode diversification,bidirectional compression |
| Pressure | 16Mpa |
| Compaction ratio | 3.0:1 |
| Loading cycle | 25-30 second |
| Unloading cycle | 15-20 second |
| pressing mechanism | The giving plate and hinge related pressing plate moving on two directing bars |
| Pressing mode | Automatic pressing |
| (1 full cycle and continuous pressing) and controlling of each cycle of pressing separately | |
| Control of pressing |
Control from the external panel on the bunker |
Lifting rear part:
| Mechanism of lifting | Two hydraulic cylinders |
| Function description | Suitable for various rubbish bins |
Others:
| Color and Logo | Optional |
| Standard configuration | Chassis,arc-shaped body,sub frame,rear lifting part,loading bunker,pushing-out plate,hydraulic system,pressing system,sewage tank,climbing ladder,pneumatic control. |
| Selective configuration | PLC electric automatic control,multifunctional rear lifting part,rear handrail and footplate,other shapes of body,rear swing arm,and etc. |
