| Place of Origin: | China |
|---|---|
| Brand Name: | Powerplus |
| Certification: | ISO 9001 |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | Plyfilm or plywood suitable for sea shipping |
| Delivery Time: | 25-30 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 SETS PER MONTH |
| Brand: | DONGFENG | Overall Dimension: | 5750X1940X2150mm |
|---|---|---|---|
| Curb Weight: | 3365kg | Van Body Volume: | 4-5m³ |
| Engine: | 95hp | Wheel Base: | 3300mm |
| Highlight: | 5CBM Side Loader Garbage Truck,4CBM Side Loader Garbage Truck |
||

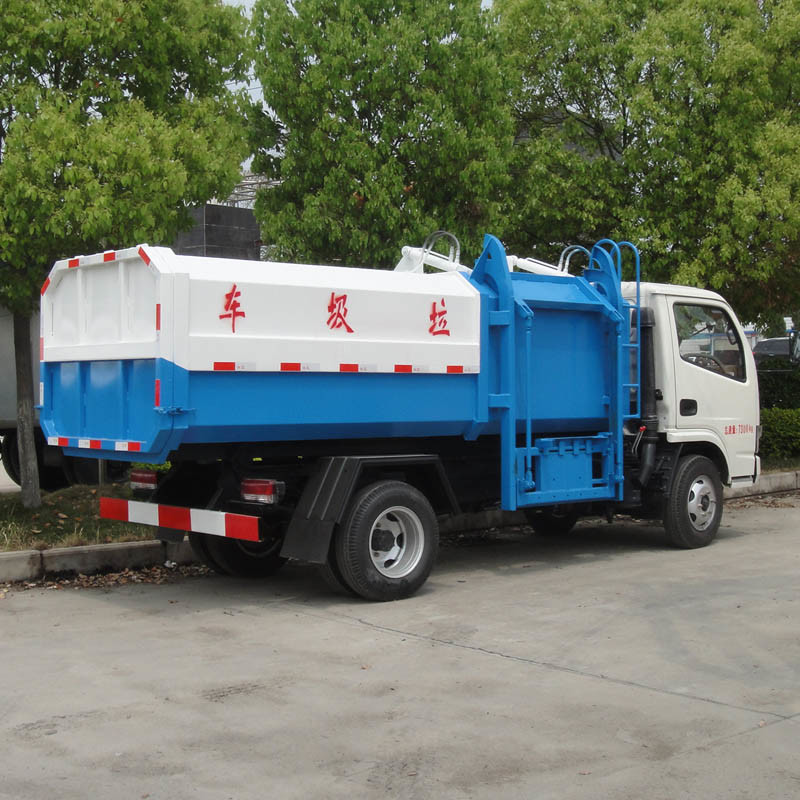

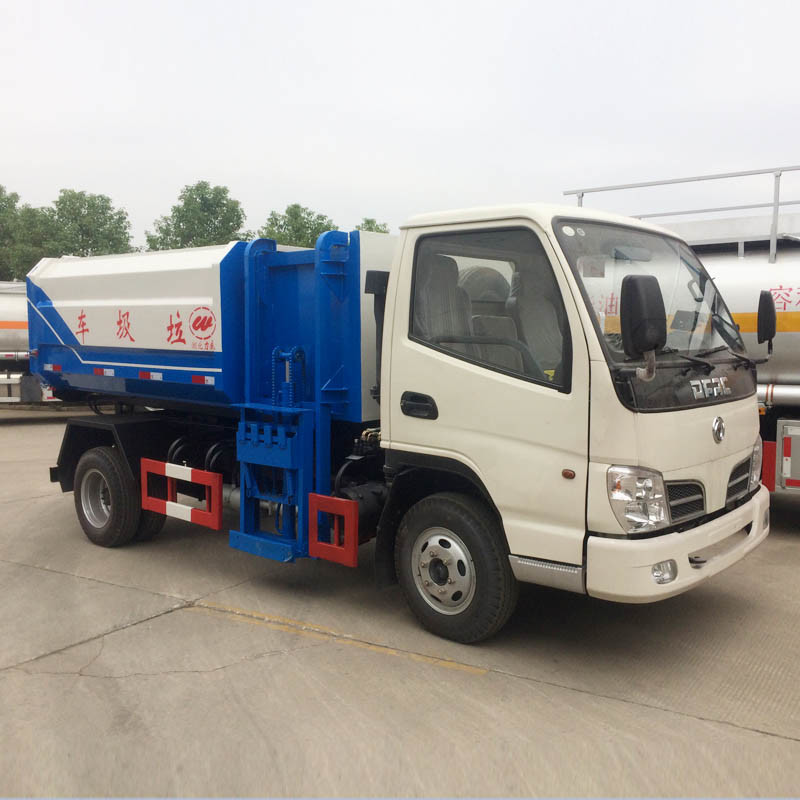

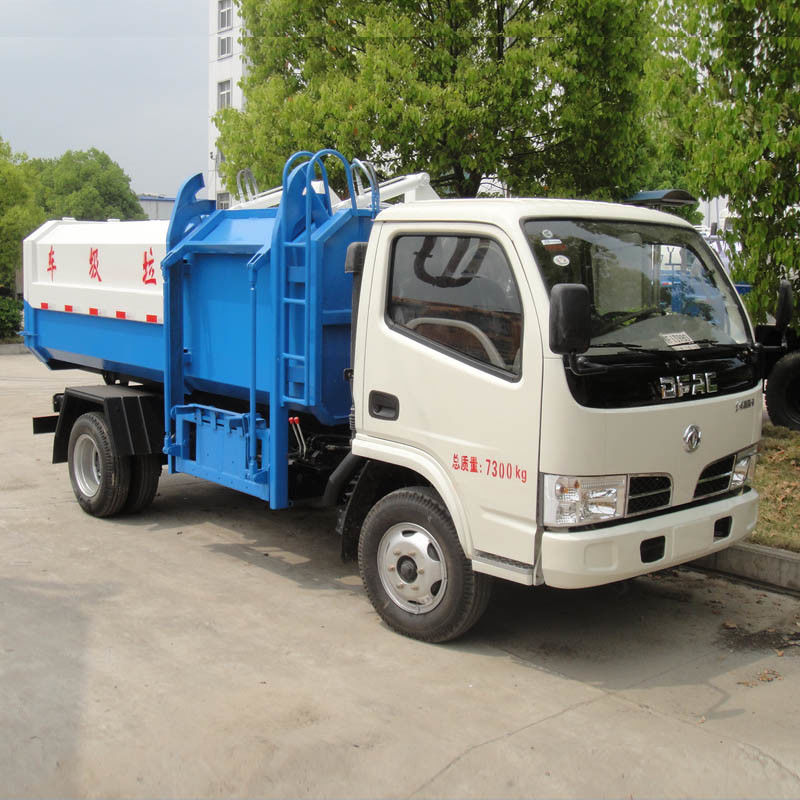

Side Loader Garbage Truck 95hp DONGFENG 4-5CBM
Vehicle parameters:
| Overall dimensions | 5750X1940X2150mm | Curb weight | 3365kg |
| Van body volume | 4-5m³ |
Chassis parameters:
| Chassis brand | DONGFENG | |||
| Overall dimensions | 5820x1940x2080mm | Wheel base | 3300mm | |
| Front/rear wheel track | 1506/1466mm | Front/rear suspension | 1032/1488mm | |
| Approach/departure angle | 19/15° | Maximum speed | 80km/h | |
| Chassis Manufacturer | Dongfeng Automobile Co.,Ltd | |||
| Cab | Configuration | Single row cab,allowable 3 passengers | ||
| Color | White,other color is optional | |||
| Engine | Model | CY4102-C3F | ||
| Emission | Euro 3 | |||
| Type | in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine | |||
| Rated power | 95hp,rated power speed 3200rpm | |||
| Displacement | 3856ml | |||
| Bore x stroke | 102x118mm | |||
| Manufacturer | Dongfeng Chaoyang Diesel Power Co. Ltd. | |||
| Tire | Size | 7.00-16 nylon tire | ||
| Number | 6+1 nos | |||
| Fuel tank | 100L,steel | |||
| Front axle | 2.0T | |||
| Rear axle | 4.0T | |||
| Drive form | 4X2 | |||
| Rated voltage | 24V,DC | |||
| Transmissions | 5 speed forward 1 reverse. | |||
| Steering wheel | Left hand drive | |||
| Selective configuration | Air Conditioner,steel wire tire,power assisted steering | |||
| If there is a slight change in the chassis parameters above,please take the actual product as the standard | ||||
| Tank material | Carbon steel | Van body volume | 4-5m³ |
| Side wall | 2.5mm | Bottom plate | 3mm |
| Color and Logo | Optional | ||
| Standard configuration | Chassis,sub frame,van body with rear door and top cover,scraper,hydraulic cylinder for unloading,garbage bins lifting system. | ||
| Selective configuration | Hydraulic rear door. | ||
