| Place of Origin: | China |
|---|---|
| Brand Name: | Powerplus |
| Certification: | ISO 9001 |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | Plyfilm or plywood suitable for sea shipping |
| Delivery Time: | 25-30 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 SETS PER MONTH |
| Brand: | ISUZU 600P | Overall Dimension: | 6850X2260X2850mm |
|---|---|---|---|
| Curb Weight: | 3200kg | Garbage Container Dimensions: | 3500×1650×1200mm |
| Garbage Container Volume: | 6m³ | Engine: | ISUZU 120hp |
| Wheel Base: | 3815mm | ||
| Highlight: | 6cbm Swing Arm Garbage Truck,120hp Swing Arm Garbage Truck |
||

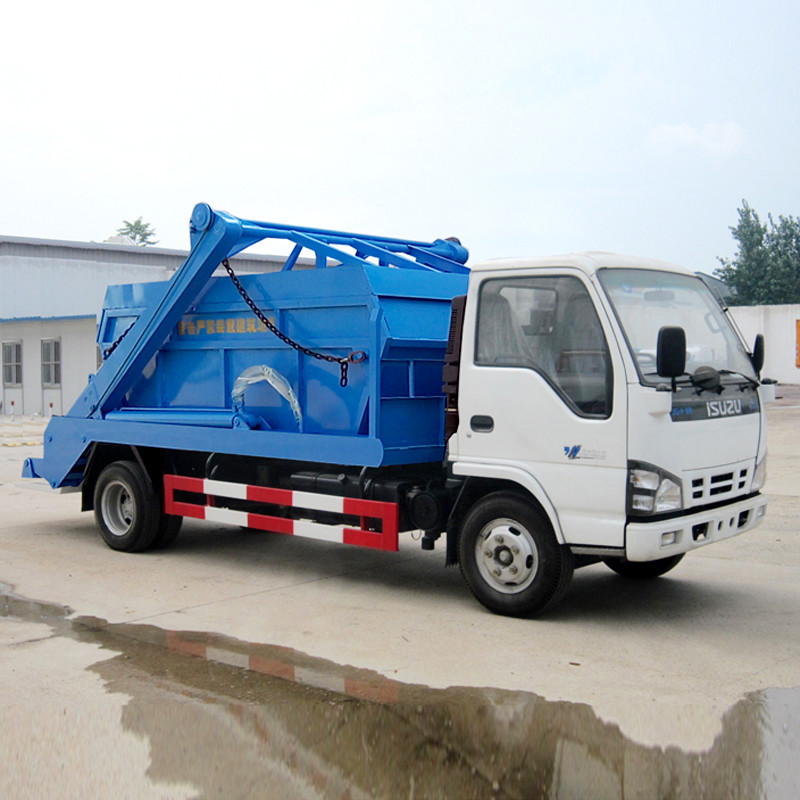

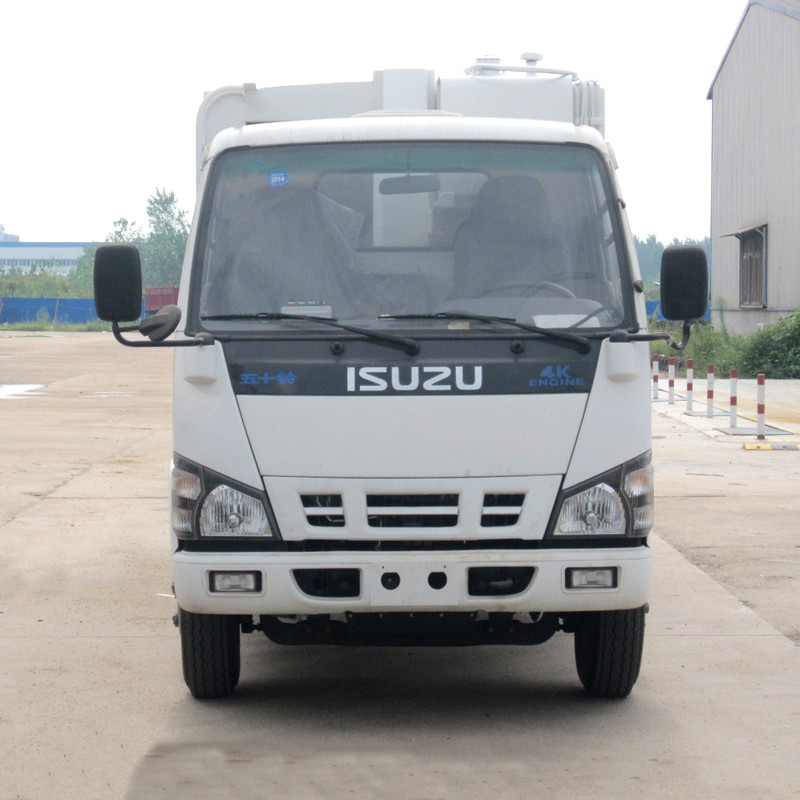

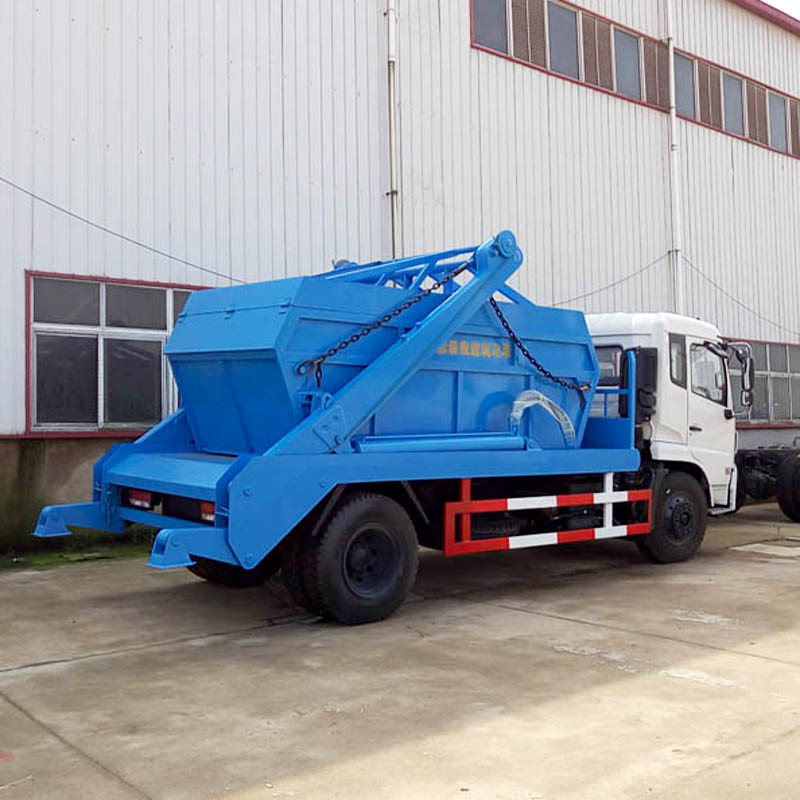

ISUZU 600P 6cbm Swing Arm Garbage Truck With ISUZU 120hp Engine
Vehicle parameters:
| Overall dimensions | 6850X2260X2850mm | Curb weight | 3200kg |
| Garbage container dimensions | 3500×1650×1200mm | Garbage container volume | 6m³ |
Chassis parameters:
| Chassis brand | ISUZU | |||
| Overall dimensions | 6645x1880x2160mm | Wheel base | 3815mm | |
| Front/rear wheel track | 1504/1425mm | Front/rear suspension | 1015/1815mm | |
| Approach/departure angle | 24/14° | Maximum speed | 105km/h | |
| Chassis Manufacturer | QingLing Motors (Group) Co., Ltd. | |||
| Cab | Configuration | 600P,single row cab, allowable 2 passengers, car interior, air conditioner, USB radio interface, with oil brake vacuum booster pump | ||
| Color | White, other color is optional | |||
| Engine | Model | 4KH1-TCG40 | ||
| Emission | Euro 4 | |||
| Type | 4 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve ,diesel engine | |||
| Rated power | 120hp,rated power speed 3400rpm | |||
| Displacement | 2999ml | |||
| Manufacturer | Isuzu Engine (Chongqing) Co., Ltd. | |||
| Tire | Size | 7.00-15 10PR nylon tire | ||
| Number | 6+1 nos | |||
| Front axle | 2.5 tons | |||
| Rear axle | 4.8 tons | |||
| Drive form | 4X2 | |||
| Suspension | Multi leaf springs | |||
| Rated voltage | 24V,DC | |||
| Transmissions | Isuzu MSB five speed transmission,5 speed forward 1 reverse. | |||
| Steering device | Power assisted steering | |||
| Steering wheel | Left hand drive | |||
| If there is a slight change in the chassis parameters above,please take the actual product as the standard | ||||
| Garbage container dimensions | 3500×1650×1200mm | Garbage container volume | 6m³ |
| Garbage container material | Carbon steel | Side wall | 2.5mm |
| Bottom plate | 3mm | Color and Logo | Optional |
| Standard configuration | Chassis, sub frame, two balancing valves, two domestic oil cylinders, web plate, one garbage container, rear hydraulic legs, unloading container locking pins. | ||
| Selective configuration | Garbage container cover. | ||
