| Place of Origin: | China |
|---|---|
| Brand Name: | Powerplus |
| Certification: | ISO 9001 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | Plyfilm or plywood suitable for sea shipping |
| Delivery Time: | 45-60 days |
| Supply Ability: | 10 SETS PER MONTH |
| Cylinder Arrangement: | Inline | Starting System: | Electric |
|---|---|---|---|
| Frequency: | 50Hz | Engine Type: | 4-stroke |
| Cooling System: | Water-cooled | Warranty: | 1 Year |
| Fuel Type: | Biogas | Control Panel: | Digital |
| Highlight: | 1000kw biogas generator,large bio gas genset,biogas generator 1 mw |
||

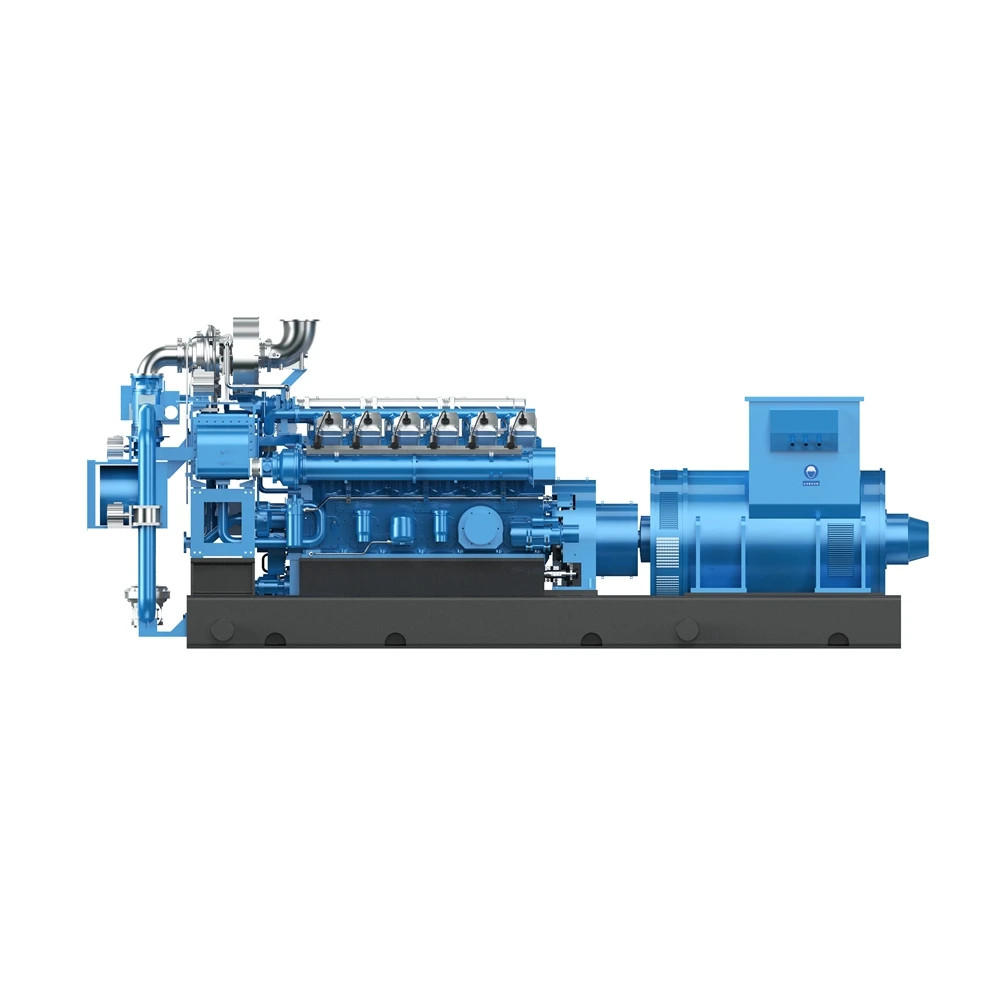

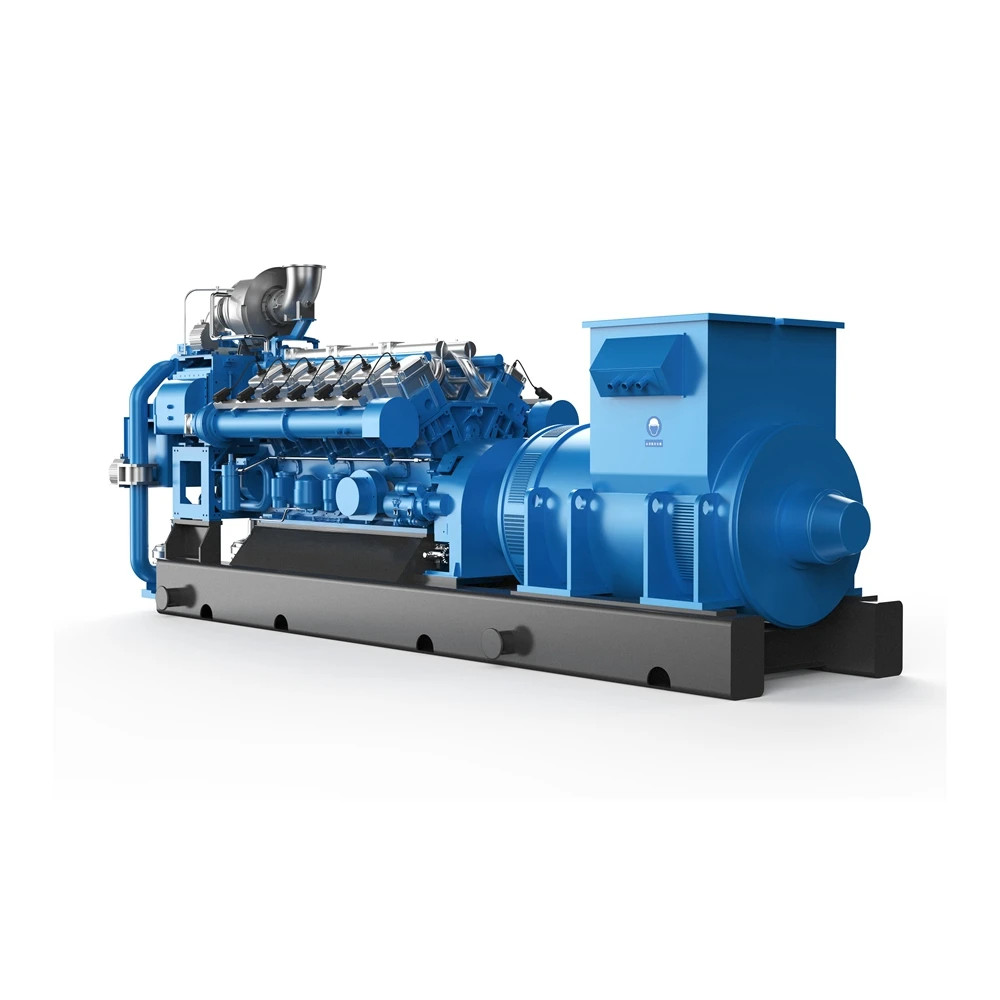

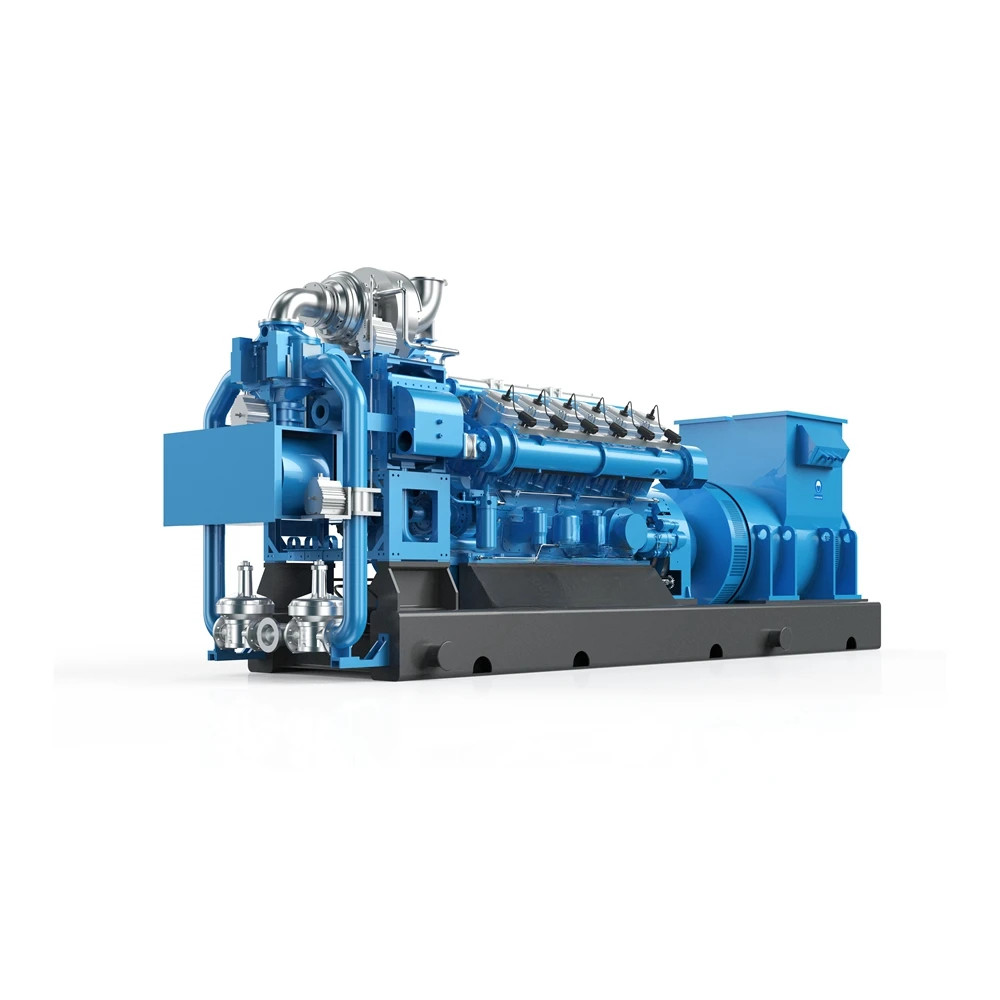

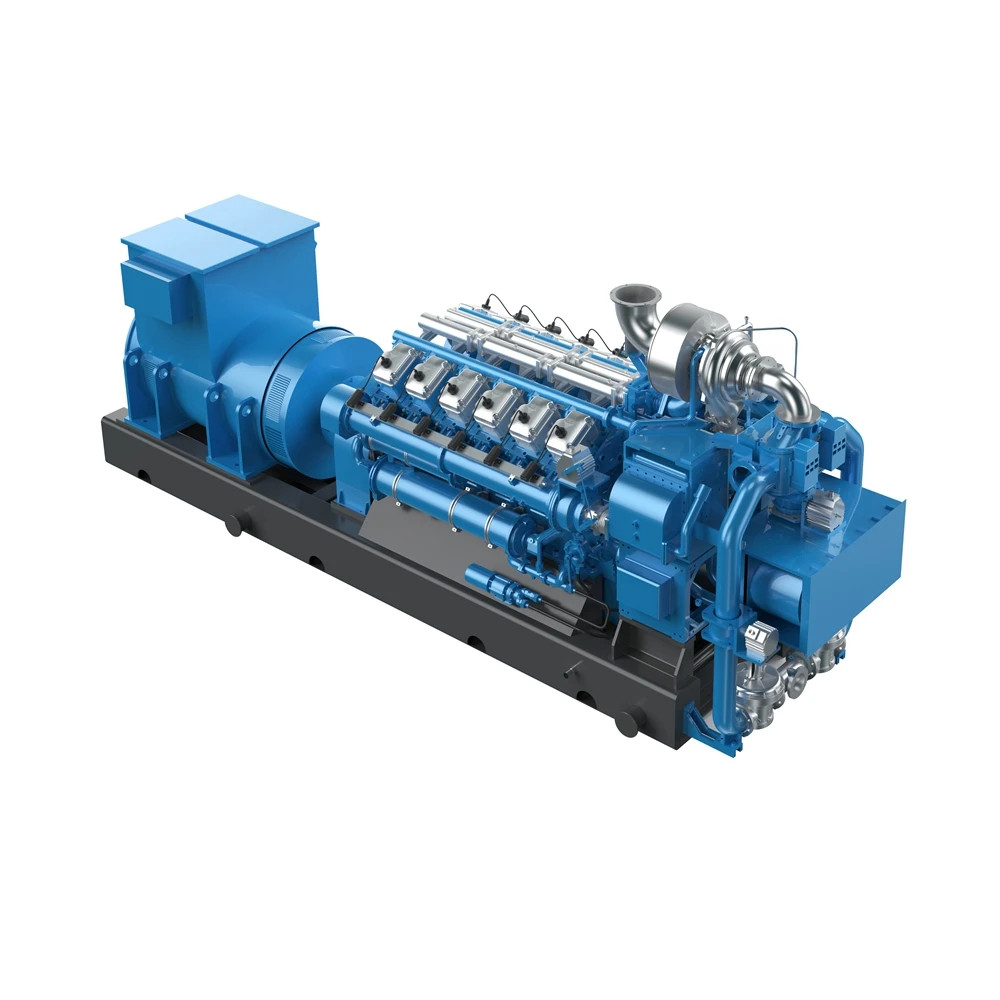

High Quality 1000kW Biogas Generator 1 MW Biogas Power Plant Large Power Genset
| Name of Genset | 1000kW Biogas Generator Set |
| Genset Series | 12 Series (16190) |
| Genset Model | CP1000GFZ11 |
| Rated power | 1000kW |
| Rated current | 1804/144.6/68.7A |
| Rated voltage | 400/6300/10500V |
| Rated frequency | 50/60Hz |
| Rated rotation speed | 1000/1200r/min |
| Power Factor | 0.8cosΦ |
| Oil Consumption | ≤0.5g/(kW·h) |
| Performance Grade | G2 |
| Phase Number & Wiring Method | 3 Phase 3 Wire or 3 Phase 4 Wire |
| Voltage Adjustment Method | Automatic Voltage Control |
| Excitation Method | Brushless Excitation |
| Starting Method | DC24V Electrical Starting |
| Boundary Dimension(LxBxH) | 6200×1740× 2490mm |
| Net Weight | 23000kg |
