| Place of Origin: | China |
|---|---|
| Brand Name: | Powerplus |
| Certification: | ISO 9001 |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | Plyfilm or plywood suitable for sea shipping |
| Delivery Time: | 45-60 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 SETS PER MONTH |
| Diesel Engine: | Yuchai | Frenqucy: | 50/60HZ |
|---|---|---|---|
| Warrent: | 1000 Hours Or 12 Months | Controller: | Smartgen,ComAp,Deep Sea,etc |
| Type: | Inline / V-type, 4/6/12/16 Cylinder,4-stroke | Start Mode: | Electric Start |
| Generator: | Stamford,Leroy Somer,Mecc Alte,Marathon, Etc | ||
| Highlight: | yc16vcn large natural gas generator,1500kw large natural gas generator,1500kw gas and natural gas generator |
||

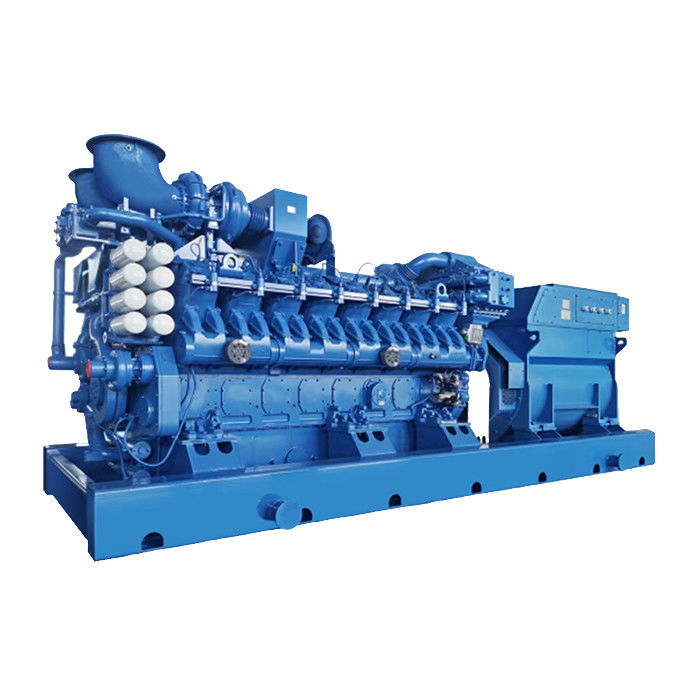

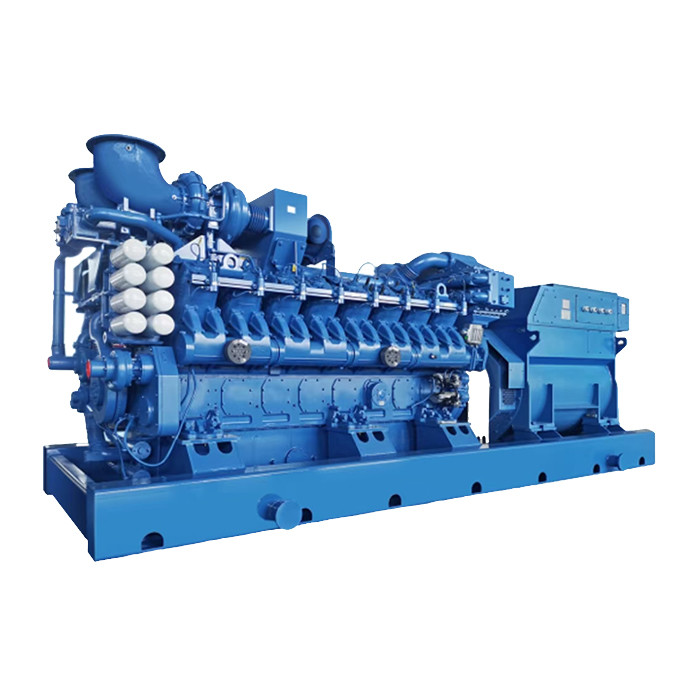

1500kW Natural Gas Genset Yuchai YC16VCN
Main parameter:
| Parameters of genset | ||
| Genset model | YC16VTDG-1100N5HC | YC16VTDG-1100N5LC |
| Rated power (kW) | 1500 | |
| Rated voltage (V) | 10500 | 400 |
| Rated current(A) | 103.1 | 2706.4 |
| Frequency (Hz) | 50 | |
| Electric efficiency | 41% | |
| Length x width x height(mm) | 6050*2100*2750 | |
| Engine parameters | ||
| Rated speed(r/min) | 1000 | |
| Displacement(L) | 105.6 | |
| Cylinder quantity - bore/stroke(mm) | 16-200/210 | |
| Engine oil consumption (g/kWh) |
≤0.3 | |
| NOx emission(mg/Nm3) | <500 | |
| Note: All the above data are tested under standard reference conditions and vary with configuration and technical development. | ||
